多语言DNS解析逻辑排查

目录

  1. 1. Golang
    1. 1.1. fasthttp
  2. 2. Python
  3. 3. Java
  4. 4. Node
  5. 5. DotNet

简要排查一下不同语言下对应服务框架的DNS解析逻辑。以下讨论均基于linux系统。

前言：在linux系统下，DNS解析缓存一般是一个可选项，但是目前很多发行版都内置了nscd，这个服务会对DNS解析结果进行缓存。所以在排查DNS解析问题的时候，需要注意是否有nscd缓存的影响。见关闭Linux下的DNS缓存

Golang

Golang目前对于DNS的解析流程的实现位于 net.Resolver 下。go自身实现了一套语言层面的DNS解析器，同时也支持应用直接调用系统的DNS解析器。（纯go实现和cgo实现）

来自：https://zhuanlan.zhihu.com/p/54989059

这个顺序计算是依赖平台类型，/etc/nsswitch.conf等的。比如goos为darwin和android的平台都是用cgo解析，这可能是因为这两个平台上找不到/etc/hosts和/etc/resolv.conf文件吧。然后先files还是先dns的关系是使用/etc/nsswitch.conf的配置的。对应linux都是使用purego去解析的。

如果你确定你机器上有/etc/hosts和/etc/resolv.conf这两个文件，而且格式正确，应用程序有访问权限，那个你可以设置Resovler.PreferGo=true，强制使用purego。

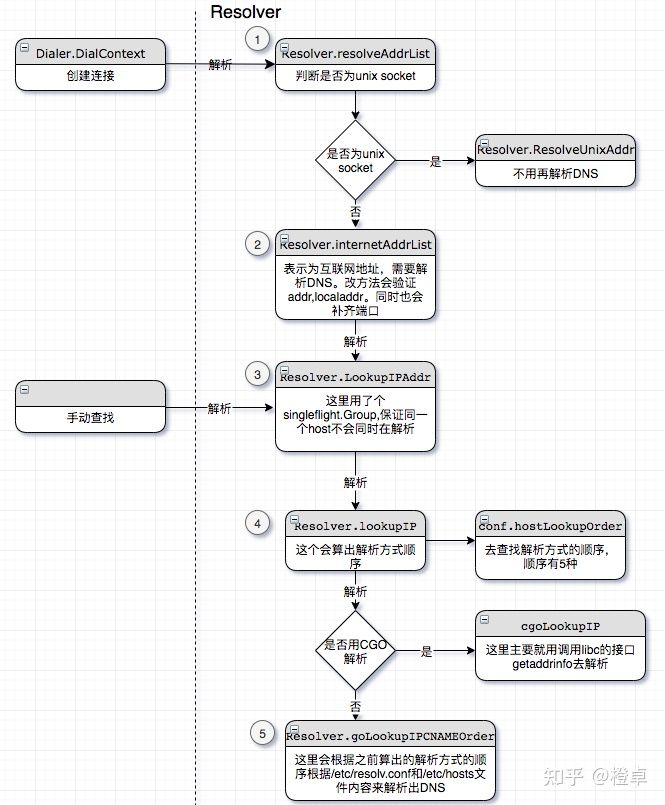

解析流程如下

1709016744306

在Resolver中，会计算本次解析的方式顺序，然后依次调用对应的解析器进行解析。如果计算出的结果是使用纯go解析，那么会调用goLookupIPCNAMEOrder函数，这个函数会根据系统中的/etc/hosts和/etc/resolve.conf中的配置解析DNS结果。如果计算出的结果是cgo,会调用libc的getaddrinfo函数进行解析。

如果使用了某些第三方库，第三方库为了性能可能会使用自己的DNS解析器，这时候需要查看对应库的文档来确定具体解析方式。

fasthttp

可以在fasthttp库的 tcpdialer.go 中找到DNS缓存的设置。见 TCPDialer 结构体

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
// TCPDialer contains options to control a group of Dial calls.
type TCPDialer struct {
 // Concurrency controls the maximum number of concurrent Dials
 // that can be performed using this object.
 // Setting this to 0 means unlimited.
 //
 // WARNING: This can only be changed before the first Dial.
 // Changes made after the first Dial will not affect anything.
 Concurrency int

 // LocalAddr is the local address to use when dialing an
 // address.
 // If nil, a local address is automatically chosen.
 LocalAddr *net.TCPAddr

 // This may be used to override DNS resolving policy, like this:
 // var dialer = &fasthttp.TCPDialer{
 //  Resolver: &net.Resolver{
 //   PreferGo:     true,
 //   StrictErrors: false,
 //   Dial: func (ctx context.Context, network, address string) (net.Conn, error) {
 //    d := net.Dialer{}
 //    return d.DialContext(ctx, "udp", "8.8.8.8:53")
 //   },
 //  },
 // }
 Resolver Resolver

 // DisableDNSResolution may be used to disable DNS resolution
 DisableDNSResolution bool
 // DNSCacheDuration may be used to override the default DNS cache duration (DefaultDNSCacheDuration)
 DNSCacheDuration time.Duration

 tcpAddrsMap sync.Map

 concurrencyCh chan struct{}

 once sync.Once
}

Python

Python中自带的socket库在解析DNS时会进行对应的系统调用，在linux上的话，标准的cpython解释器中对这个方法的定义如下

（代码摘自cpython主分支）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
/*ARGSUSED*/
static PyObject *
socket_gethostbyname(PyObject *self, PyObject *args)
{
    char *name;
    struct sockaddr_in addrbuf;
    PyObject *ret = NULL;

    if (!PyArg_ParseTuple(args, "et:gethostbyname", "idna", &name))
        return NULL;
    if (PySys_Audit("socket.gethostbyname", "O", args) < 0) {
        goto finally;
    }
    socket_state *state = get_module_state(self);
    int rc = setipaddr(state, name, (struct sockaddr *)&addrbuf,
                       sizeof(addrbuf), AF_INET);
    if (rc < 0) {
        goto finally;
    }
    ret = make_ipv4_addr(&addrbuf);
finally:
    PyMem_Free(name);
    return ret;
}
setipaddr代码(有点长)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
static int
setipaddr(const char *name, struct sockaddr*addr_ret, size_t addr_ret_size, int af)
{
    struct addrinfo hints, *res;
    int error;

    memset((void *) addr_ret, '\0', sizeof(*addr_ret));
    if (name[0] == '\0') {
        int siz;
        memset(&hints, 0, sizeof(hints));
        hints.ai_family = af;
        hints.ai_socktype = SOCK_DGRAM;         /*dummy*/
        hints.ai_flags = AI_PASSIVE;
        Py_BEGIN_ALLOW_THREADS
        ACQUIRE_GETADDRINFO_LOCK
        error = getaddrinfo(NULL, "0", &hints, &res);
        Py_END_ALLOW_THREADS
        /* We assume that those thread-unsafe getaddrinfo() versions
        *are* safe regarding their return value, ie. that a
        subsequent call to getaddrinfo() does not destroy the
        outcome of the first call. */
        RELEASE_GETADDRINFO_LOCK
        if (error) {
            set_gaierror(error);
            return -1;
        }
        switch (res->ai_family) {
        case AF_INET:
            siz = 4;
            break;

# ifdef ENABLE_IPV6

        case AF_INET6:
            siz = 16;
            break;

# endif

        default:
            freeaddrinfo(res);
            PyErr_SetString(PyExc_OSError,
                "unsupported address family");
            return -1;
        }
        if (res->ai_next) {
            freeaddrinfo(res);
            PyErr_SetString(PyExc_OSError,
                "wildcard resolved to multiple address");
            return -1;
        }
        if (res->ai_addrlen < addr_ret_size)
            addr_ret_size = res->ai_addrlen;
        memcpy(addr_ret, res->ai_addr, addr_ret_size);
        freeaddrinfo(res);
        return siz;
    }
    /*special-case broadcast - inet_addr() below can return INADDR_NONE for
    * this */
    if (strcmp(name, "255.255.255.255") == 0 ||
        strcmp(name, "<broadcast>") == 0) {
        struct sockaddr_in*sin;
        if (af != AF_INET && af != AF_UNSPEC) {
            PyErr_SetString(PyExc_OSError,
                "address family mismatched");
            return -1;
        }
        sin = (struct sockaddr_in *)addr_ret;
        memset((void*) sin, '\0', sizeof(*sin));
        sin->sin_family = AF_INET;

# ifdef HAVE_SOCKADDR_SA_LEN

        sin->sin_len = sizeof(*sin);

# endif

        sin->sin_addr.s_addr = INADDR_BROADCAST;
        return sizeof(sin->sin_addr);
    }

    /* avoid a name resolution in case of numeric address */

# ifdef HAVE_INET_PTON

    /*check for an IPv4 address*/
    if (af == AF_UNSPEC || af == AF_INET) {
        struct sockaddr_in *sin = (struct sockaddr_in*)addr_ret;
        memset(sin, 0, sizeof(*sin));
        if (inet_pton(AF_INET, name, &sin->sin_addr) > 0) {
            sin->sin_family = AF_INET;

# ifdef HAVE_SOCKADDR_SA_LEN

            sin->sin_len = sizeof(*sin);

# endif

            return 4;
        }
    }

# ifdef ENABLE_IPV6

    /* check for an IPv6 address - if the address contains a scope ID, we
    * fallback to getaddrinfo(), which can handle translation from interface
    *name to interface index*/
    if ((af == AF_UNSPEC || af == AF_INET6) && !strchr(name, '%')) {
        struct sockaddr_in6 *sin = (struct sockaddr_in6*)addr_ret;
        memset(sin, 0, sizeof(*sin));
        if (inet_pton(AF_INET6, name, &sin->sin6_addr) > 0) {
            sin->sin6_family = AF_INET6;

# ifdef HAVE_SOCKADDR_SA_LEN

            sin->sin6_len = sizeof(*sin);

# endif

            return 16;
        }
    }

# endif /*ENABLE_IPV6*/

# else /*HAVE_INET_PTON*/

    /* check for an IPv4 address*/
    if (af == AF_INET || af == AF_UNSPEC) {
        struct sockaddr_in *sin = (struct sockaddr_in*)addr_ret;
        memset(sin, 0, sizeof(*sin));
        if ((sin->sin_addr.s_addr = inet_addr(name)) != INADDR_NONE) {
            sin->sin_family = AF_INET;

# ifdef HAVE_SOCKADDR_SA_LEN

            sin->sin_len = sizeof(*sin);

# endif

            return 4;
        }
    }

# endif /*HAVE_INET_PTON*/

    /* perform a name resolution */
    memset(&hints, 0, sizeof(hints));
    hints.ai_family = af;
    Py_BEGIN_ALLOW_THREADS
    ACQUIRE_GETADDRINFO_LOCK
    error = getaddrinfo(name, NULL, &hints, &res);

# if defined(__digital__) && defined(__unix__)

    if (error == EAI_NONAME && af == AF_UNSPEC) {
        /*On Tru64 V5.1, numeric-to-addr conversion fails
        if no address family is given. Assume IPv4 for now.*/
        hints.ai_family = AF_INET;
        error = getaddrinfo(name, NULL, &hints, &res);
    }

# endif

    Py_END_ALLOW_THREADS
    RELEASE_GETADDRINFO_LOCK  /* see comment in setipaddr()*/
    if (error) {
        set_gaierror(error);
        return -1;
    }
    if (res->ai_addrlen < addr_ret_size)
        addr_ret_size = res->ai_addrlen;
    memcpy((char *) addr_ret, res->ai_addr, addr_ret_size);
    freeaddrinfo(res);
    switch (addr_ret->sa_family) {
    case AF_INET:
        return 4;

# ifdef ENABLE_IPV6

    case AF_INET6:
        return 16;

# endif

    default:
        PyErr_SetString(PyExc_OSError, "unknown address family");
        return -1;
    }
}

在linux中，python的setipaddr也会执行libc中的getaddrinfo来获取DNS解析结果。

部分库出于性能问题可能会对结果进行缓存，参考对应说明文档即可。

Java

Java作为一个在虚拟机中执行的编译行语言，DNS解析的逻辑略有不同。

Java本身实现了DNS解析缓存，而且有几个配置项可以根据应用需求单独配置。

以下参考自：从 UnknownHostException 错误来分析 Java 的 DNS 解析和缓存机制

具体的配置项包含：

1
2
networkaddress.cache.ttl
networkaddress.cache.negative.ttl

其中networkaddress.cache.ttl是指DNS解析结果的缓存时间，networkaddress.cache.negative.ttl是指DNS解析失败的结果的缓存时间。

设置方式：

1
2
java.security.Security.setProperty("networkaddress.cache.ttl", "0");
java.security.Security.setProperty("networkaddress.cache.negative.ttl", "0");

就可以禁用DNS解析缓存。

Node

Node.JS中，Http请求会调用DNS查询模块，见下

1
2
3
4
5
6
// ~/.cache/typescript/5.3/node_modules/@types/node/http.d.ts
declare module "http" {
    import * as stream from "node:stream";
    import { URL } from "node:url";
    import { LookupOptions } from "node:dns";
    ....

在DNS模块中，对DNS解析方式的说明如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
// ~/.cache/typescript/5.3/node_modules/@types/node/dns.d.ts
    /**
     * Resolves a host name (e.g. `'nodejs.org'`) into the first found A (IPv4) or
     * AAAA (IPv6) record. All `option` properties are optional. If `options` is an
     * integer, then it must be `4` or `6` – if `options` is `0` or not provided, then
     * IPv4 and IPv6 addresses are both returned if found.
     *
     * With the `all` option set to `true`, the arguments for `callback` change to`(err, addresses)`, with `addresses` being an array of objects with the
     * properties `address` and `family`.
     *
     * On error, `err` is an `Error` object, where `err.code` is the error code.
     * Keep in mind that `err.code` will be set to `'ENOTFOUND'` not only when
     * the host name does not exist but also when the lookup fails in other ways
     * such as no available file descriptors.
     *
     * `dns.lookup()` does not necessarily have anything to do with the DNS protocol.
     * The implementation uses an operating system facility that can associate names
     * with addresses and vice versa. This implementation can have subtle but
     * important consequences on the behavior of any Node.js program. Please take some
     * time to consult the `Implementation considerations section` before using`dns.lookup()`.
     ...

所以在node.js中发送https请求的时候，会直接call DNS的系统调用。这就和python的方式差不多

DotNet

DotNet在SDK内部实现了一个System.Net.Dns.GetAddrInfo方法。

参考：https://stackoverflow.com/questions/34351030/no-such-host-is-known-in-getaddrinfo-c-sharp-sockets

这是微软的SDK中对DotNET的实现：

位于System/net/System/Net/DNS.cs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
private unsafe static IPHostEntry GetAddrInfo(string name) {
    IPHostEntry hostEntry;
    SocketError errorCode = TryGetAddrInfo(name, out hostEntry);
    if (errorCode != SocketError.Success) {
        throw new SocketException(errorCode);
    }
    return hostEntry;
}

//
// IPv6 Changes: Add getaddrinfo and getnameinfo methods.
//
private unsafe static SocketError TryGetAddrInfo(string name, out IPHostEntry hostinfo)
{
    // gets the resolved name
    return TryGetAddrInfo(name, AddressInfoHints.AI_CANONNAME, out hostinfo);
}

private unsafe static SocketError TryGetAddrInfo(string name, AddressInfoHints flags, out IPHostEntry hostinfo)
{
    //
    // Use SocketException here to show operation not supported
    // if, by some nefarious means, this method is called on an
    // unsupported platform.
    //
#if FEATURE_PAL
    throw new SocketException(SocketError.OperationNotSupported);
#else
    SafeFreeAddrInfo root = null;
    ArrayList addresses = new ArrayList();
    string canonicalname = null;

    AddressInfo hints = new AddressInfo();
    hints.ai_flags = flags;
    hints.ai_family = AddressFamily.Unspecified;   // gets all address families
    //
    // Use try / finally so we always get a shot at freeaddrinfo
    //
    try {
        SocketError errorCode = (SocketError)SafeFreeAddrInfo.GetAddrInfo(name, null, ref hints, out root);
        if (errorCode != SocketError.Success) { // Should not throw, return mostly blank hostentry
            hostinfo = new IPHostEntry();
            hostinfo.HostName = name;
            hostinfo.Aliases = new string[0];
            hostinfo.AddressList = new IPAddress[0];
            return errorCode;
        }

        AddressInfo* pAddressInfo = (AddressInfo*)root.DangerousGetHandle();
        //
        // Process the results
        //
        while (pAddressInfo!=null) {
            SocketAddress sockaddr;
            //
            // Retrieve the canonical name for the host - only appears in the first AddressInfo
            // entry in the returned array.
            //
            if (canonicalname==null && pAddressInfo->ai_canonname!=null) {
                canonicalname = Marshal.PtrToStringUni((IntPtr)pAddressInfo->ai_canonname);
            }
            //
            // Only process IPv4 or IPv6 Addresses. Note that it's unlikely that we'll
            // ever get any other address families, but better to be safe than sorry.
            // We also filter based on whether IPv6 is supported on the current
            // platform / machine.
            //
            if ( ( pAddressInfo->ai_family == AddressFamily.InterNetwork ) || // Never filter v4
                (pAddressInfo->ai_family == AddressFamily.InterNetworkV6 && Socket.OSSupportsIPv6))

            {
                sockaddr = new SocketAddress(pAddressInfo->ai_family, pAddressInfo->ai_addrlen);
                //
                // Push address data into the socket address buffer
                //
                for (int d = 0; d < pAddressInfo->ai_addrlen; d++) {
                    sockaddr.m_Buffer[d] = *(pAddressInfo->ai_addr + d);
                }
                //
                // NOTE: We need an IPAddress now, the only way to create it from a
                //       SocketAddress is via IPEndPoint. This ought to be simpler.
                //
                if ( pAddressInfo->ai_family == AddressFamily.InterNetwork ) {
                    addresses.Add( ((IPEndPoint)IPEndPoint.Any.Create(sockaddr)).Address );
                }
                else {
                    addresses.Add( ((IPEndPoint)IPEndPoint.IPv6Any.Create(sockaddr)).Address );
                }
            }
            //
            // Next addressinfo entry
            //
            pAddressInfo = pAddressInfo->ai_next;
        }
    }
    finally {
        if (root != null) {
            root.Close();
        }
    }

    //
    // Finally, put together the IPHostEntry
    //
    hostinfo = new IPHostEntry();

    hostinfo.HostName = canonicalname!=null ? canonicalname : name;
    hostinfo.Aliases = new string[0];
    hostinfo.AddressList = new IPAddress[addresses.Count];
    addresses.CopyTo(hostinfo.AddressList);

    return SocketError.Success;
#endif // FEATURE_PAL
}

其中DNS对应的系统调用位于System/net/System/Net/_SafeNetHandles.cs

1
2
3
internal static int GetAddrInfo(string nodename, string servicename, ref AddressInfo hints, out SafeFreeAddrInfo outAddrInfo) {
    return UnsafeNclNativeMethods.SafeNetHandlesXPOrLater.GetAddrInfoW(nodename, servicename, ref hints, out outAddrInfo);
}

显然是直接调用对应操作系统的系统调用。考虑到dotNet是dotNetCore的升级，其中DNS解析逻辑应该一致。
